Im going to make this random project that includes flashy the ghost
official logos are here, and i think svg is one of the included formats.
1 Like
Can I use flashy for a wick editor project and even though it says not to change the colors, dimensions or add your own text/images can I do it for this project
if it’s for a wick editor project i’m sure nobody’s gonna actually care, so you should be perfectly fine.
1 Like
Try this one otherwise ask https://forum.wickeditor.com/u/luxapodular He is one of the original creators.
Luke
1 Like
the SVG doesn’t work in wick
from what i remember, i don’t think svgs work in wick in most or all cases. you might be stuck with the png if you want to import it into wick.
You can the SVG needs to be sanitized.

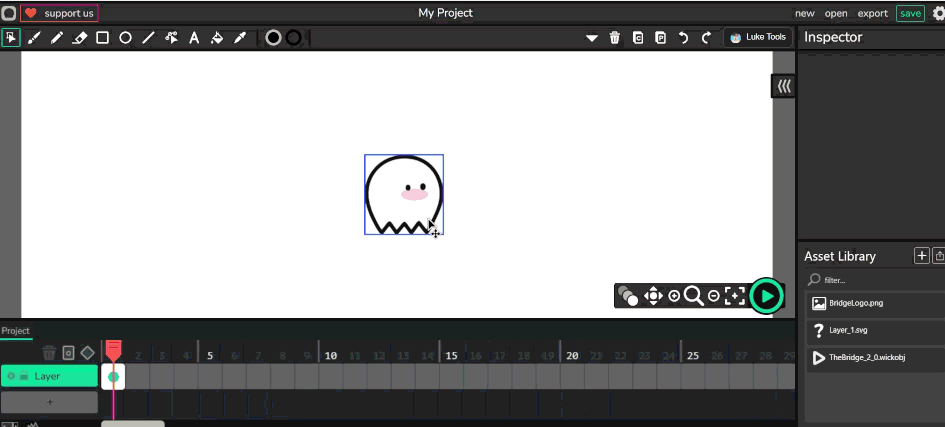

I have writen a tool that imports from Inkscape It requires Python running and my Inkscape extension, my Bridge and Luke Tools and the import script. I’ post here later a truncated version that imports using my Bridge and Luke Tools without Inkscape. I just need to think about how to do that.
Luke
First of all - copy this code and stick it in a text file & save where you like call it something like SVG_Importer.txt
<html lang="en">
<head>
<meta charset="utf-8">
<title>Luke Tools SVG Sanitize Import On Stage</title>
<style>
body { margin: 0; padding: 14px; background: #222; color: #eaeaea; font-family: Arial, sans-serif; }
.panel { border: 1px solid #444; background: rgba(0,0,0,0.35); border-radius: 8px; padding: 12px; display: flex; flex-direction: column; gap: 10px; }
.title { font-size: 12px; color: #9aa; text-transform: uppercase; border-bottom: 1px solid #444; padding-bottom: 5px; display:flex; align-items:center; gap:10px; }
.brand { width: 22px; height: 22px; border-radius: 4px; background:#111; border:1px solid #333; display:flex; align-items:center; justify-content:center; overflow:hidden; }
.brand img { width:100%; height:100%; object-fit:cover; display:block; }
input[type="file"] { width: 100%; padding: 10px; background: #1a1a1a; color: #aaa; border: 1px dashed #555; border-radius: 6px; box-sizing:border-box; }
button { width: 100%; padding: 12px; border: none; border-radius: 6px; background: #21b26b; color: #fff; font-weight: bold; cursor: pointer; }
button.secondary { background:#3a3a3a; }
button:disabled { opacity: 0.55; cursor: default; }
#consoleLog { background: #111; border: 1px solid #333; border-radius: 6px; padding: 10px; font-family: monospace; font-size: 11px; color: #0f0; height: 220px; overflow-y: auto; white-space: pre-wrap; }
.settings { font-size: 11px; color: #cfcfcf; display: flex; justify-content: space-between; gap: 10px; align-items: center; flex-wrap: wrap; }
.settings input[type="number"] { width: 70px; background:#111; color:white; border:1px solid #444; border-radius: 4px; padding: 4px 6px; }
.chk { display:flex; align-items:center; gap:8px; }
.hint { font-size: 11px; color: #aaa; opacity: 0.9; line-height: 1.35; }
.row { display:flex; gap:10px; }
.row > * { flex:1; }
textarea { width:100%; min-height: 120px; background:#111; color:#ddd; border:1px solid #333; border-radius:6px; padding:8px; box-sizing:border-box; font-family: monospace; font-size: 11px; white-space: pre; overflow:auto; }
a { color:#7fd; }
</style>
</head>
<body>
<div class="panel">
<div class="title">
<span class="brand" title="Luke Tools">
<img alt="Luke Tools" src="https://raw.githubusercontent.com/lukeo25/WickTools/main/LukeToolsBrand.png">
</span>
<span>SVG Importer With Sanitizer Import To Assets Then Place On Stage</span>
</div>
<input type="file" id="svgFile" accept=".svg,image/svg+xml">
<div class="settings">
<span>Frame: <input type="number" id="frameNum" value="1" min="1"></span>
<span class="chk">
<input type="checkbox" id="wrapAsClip" checked>
<label for="wrapAsClip">Wrap placed SVG as Clip</label>
</span>
<span class="chk">
<input type="checkbox" id="nameClipFromFile" checked>
<label for="nameClipFromFile">Name clip from filename</label>
</span>
<span class="chk">
<input type="checkbox" id="keepDefs" checked>
<label for="keepDefs">Keep defs</label>
</span>
<span class="chk">
<input type="checkbox" id="removeImages">
<label for="removeImages">Remove image tags</label>
</span>
<span class="chk">
<input type="checkbox" id="stripAllStyleTags">
<label for="stripAllStyleTags">Strip style tags</label>
</span>
<span class="chk">
<input type="checkbox" id="suppressToasts" checked>
<label for="suppressToasts">Suppress Wick import toasts</label>
</span>
</div>
<div class="row">
<button id="importBtn">Import Sanitized SVG And Place On Stage</button>
<button id="clearLogBtn" class="secondary" type="button">Clear Log</button>
</div>
<div class="hint">
Flow matches your asset loader: createAssets, wait for asset, move playhead, ensure frame, createImagePathFromAsset, select, optional clip.
</div>
<div class="row">
<div style="flex:1;">
<div class="hint">Original preview</div>
<textarea id="origPreview" readonly></textarea>
</div>
<div style="flex:1;">
<div class="hint">Sanitized preview</div>
<textarea id="sanPreview" readonly></textarea>
</div>
</div>
<div id="consoleLog">Ready.</div>
</div>
<script>
(function () {
"use strict";
var logEl = document.getElementById("consoleLog");
var btn = document.getElementById("importBtn");
var clearBtn = document.getElementById("clearLogBtn");
var fileInput = document.getElementById("svgFile");
var origPreview = document.getElementById("origPreview");
var sanPreview = document.getElementById("sanPreview");
function log(msg) {
logEl.textContent += (logEl.textContent ? "\n" : "") + msg;
logEl.scrollTop = logEl.scrollHeight;
}
function setLog(msg) {
logEl.textContent = msg || "";
logEl.scrollTop = logEl.scrollHeight;
}
clearBtn.addEventListener("click", function () {
setLog("Ready.");
});
function getBridge() {
try {
return window.LukeToolsBridge ||
(window.parent && window.parent.LukeToolsBridge) ||
window.LukeToolsLocalPanelBridge ||
(window.parent && window.parent.LukeToolsLocalPanelBridge) ||
null;
} catch (e) {
return null;
}
}
function getEditor(bridge) {
try { if (bridge && typeof bridge.getEditor === "function") return bridge.getEditor(); } catch (e1) {}
try { if (window.parent && window.parent.editor) return window.parent.editor; } catch (e2) {}
try { if (window.editor) return window.editor; } catch (e3) {}
return null;
}
function getProject(bridge, ed) {
try { if (bridge && typeof bridge.getProject === "function") return bridge.getProject(); } catch (e1) {}
try { if (ed && ed.project) return ed.project; } catch (e2) {}
return null;
}
function getWickRoot() {
try { return window.wickEditor || (window.parent && window.parent.wickEditor) || null; } catch (e) { return null; }
}
function getWickNS() {
try { return (window.Wick || (window.parent && window.parent.Wick)) || null; } catch (e) { return null; }
}
function stripExtension(name) {
var s = String(name || "");
var lastDot = s.lastIndexOf(".");
if (lastDot > 0) return s.slice(0, lastDot);
return s;
}
function listAssetUUIDs(project) {
try {
var assets = (project && typeof project.getAssets === "function") ? project.getAssets() : (project && project.assets) ? project.assets : [];
return (assets || []).map(function (a) { return a && a.uuid; }).filter(Boolean);
} catch (e) {
return [];
}
}
function waitForNewAsset(project, beforeUUIDs, expectedName, timeoutMs) {
var start = Date.now();
var beforeSet = {};
for (var i = 0; i < beforeUUIDs.length; i++) beforeSet[beforeUUIDs[i]] = true;
return new Promise(function (resolve, reject) {
(function tick() {
try {
var assets = (project && typeof project.getAssets === "function") ? project.getAssets() : (project && project.assets) ? project.assets : [];
assets = assets || [];
for (var j = 0; j < assets.length; j++) {
var a = assets[j];
if (!a || !a.uuid) continue;
if (beforeSet[a.uuid]) continue;
var nm = a.name || a.filename || "";
if (String(nm) === String(expectedName)) return resolve(a);
}
var newOnes = [];
for (var k = 0; k < assets.length; k++) {
var b = assets[k];
if (b && b.uuid && !beforeSet[b.uuid]) newOnes.push(b);
}
if (newOnes.length === 1) return resolve(newOnes[0]);
} catch (err) {}
if (Date.now() - start > timeoutMs) {
return reject(new Error("Timeout waiting for new asset: " + expectedName));
}
setTimeout(tick, 100);
})();
});
}
function getActiveLayer(project) {
try { if (project && project.activeLayer) return project.activeLayer; } catch (e1) {}
try { if (project && project.focus && project.focus.timeline && project.focus.timeline.activeLayer) return project.focus.timeline.activeLayer; } catch (e2) {}
try { if (project && project.activeTimeline && project.activeTimeline.activeLayer) return project.activeTimeline.activeLayer; } catch (e3) {}
try { if (project && project.timeline && project.timeline.activeLayer) return project.timeline.activeLayer; } catch (e4) {}
return null;
}
function setPlayhead(project, frameNumber) {
try {
if (project && project.focus && project.focus.timeline) {
project.focus.timeline.playheadPosition = frameNumber;
return true;
}
} catch (e1) {}
try {
if (project && project.activeTimeline) {
project.activeTimeline.playheadPosition = frameNumber;
return true;
}
} catch (e2) {}
try {
if (project && project.timeline) {
project.timeline.playheadPosition = frameNumber;
return true;
}
} catch (e3) {}
return false;
}
function getFrameAt(layer, frameNumber) {
try {
if (layer && typeof layer.getFrameAtPlayheadPosition === "function") {
return layer.getFrameAtPlayheadPosition(frameNumber);
}
} catch (e1) {}
try {
if (layer && typeof layer.getFrameAt === "function") return layer.getFrameAt(frameNumber);
} catch (e2) {}
return null;
}
function ensureBlankFrameAt(layer, frameNumber) {
try {
if (!layer) return null;
var existing = getFrameAt(layer, frameNumber);
if (existing) return existing;
if (typeof layer.insertBlankFrame === "function") {
return layer.insertBlankFrame(frameNumber);
}
if (typeof layer.createFrameAt === "function") {
return layer.createFrameAt(frameNumber);
}
} catch (e) {}
return null;
}
function selectionClear(project, ed) {
try { if (project && project.selection && typeof project.selection.clear === "function") project.selection.clear(); } catch (e1) {}
try { if (ed && typeof ed.clearSelection === "function") ed.clearSelection(); } catch (e2) {}
}
function selectionSelectSingle(project, ed, obj) {
selectionClear(project, ed);
try {
if (project && project.selection) {
if (typeof project.selection.select === "function") {
project.selection.select(obj);
return true;
}
if (typeof project.selection.selectMultipleObjects === "function") {
project.selection.selectMultipleObjects([obj]);
return true;
}
}
} catch (e1) {}
try {
if (ed && typeof ed.selectObjects === "function") {
ed.selectObjects([obj]);
return true;
}
} catch (e2) {}
return false;
}
function getSelectedObject(project, ed) {
try { if (project && project.selection && typeof project.selection.getSelectedObject === "function") return project.selection.getSelectedObject(); } catch (e1) {}
try {
if (ed && ed.selectedObjects && ed.selectedObjects.length) return ed.selectedObjects[0];
} catch (e2) {}
return null;
}
function createClipFromSelection(project, ed, identifier) {
try {
if (project && typeof project.createClipFromSelection === "function") {
project.createClipFromSelection({ identifier: String(identifier || "Clip"), type: "Clip" });
return { ok: true, via: "project.createClipFromSelection" };
}
} catch (e1) {}
try {
if (ed && typeof ed.createClipFromSelection === "function") {
ed.createClipFromSelection(String(identifier || "Clip"), true);
return { ok: true, via: "ed.createClipFromSelection" };
}
} catch (e2) {}
try {
if (ed && ed.actionManager && typeof ed.actionManager.doAction === "function") {
ed.actionManager.doAction(["createClipFromSelection"], [String(identifier || "Clip")]);
return { ok: true, via: "actionManager.createClipFromSelection" };
}
} catch (e3) {}
return { ok: false, reason: "No clip conversion API found" };
}
function setSelectedNameOrIdentifier(project, ed, name) {
var obj = getSelectedObject(project, ed);
if (!obj) return false;
var v = String(name || "");
var changed = false;
try { if ("identifier" in obj) { obj.identifier = v; changed = true; } } catch (e1) {}
try { if ("name" in obj) { obj.name = v; changed = true; } } catch (e2) {}
return changed;
}
function placeImagePathFromAsset(project, assetUuid, x, y) {
return new Promise(function (resolve, reject) {
try {
var Wick = getWickNS();
if (!Wick || !Wick.ObjectCache || typeof Wick.ObjectCache.getObjectByUUID !== "function") {
return reject(new Error("Wick.ObjectCache not available"));
}
var assetObj = Wick.ObjectCache.getObjectByUUID(assetUuid);
if (!assetObj) return reject(new Error("Asset not found in ObjectCache: " + assetUuid));
if (typeof project.createImagePathFromAsset !== "function") {
return reject(new Error("project.createImagePathFromAsset is not available"));
}
project.createImagePathFromAsset(assetObj, x, y, function (path) {
resolve(path);
});
} catch (err) {
reject(err);
}
});
}
function forceRefresh(ed, project) {
try { if (ed && typeof ed.projectDidChange === "function") ed.projectDidChange({ actionName: "LukeTools" }); } catch (e1) {}
try { if (ed && typeof ed.syncInterfaces === "function") ed.syncInterfaces(); } catch (e2) {}
try { if (ed && typeof ed.updateUI === "function") ed.updateUI(); } catch (e3) {}
try { if (ed && typeof ed.refresh === "function") ed.refresh(); } catch (e4) {}
try { if (ed && ed.canvas && typeof ed.canvas.redraw === "function") ed.canvas.redraw(); } catch (e5) {}
try { if (ed && typeof ed.refreshCanvas === "function") ed.refreshCanvas(); } catch (e6) {}
try {
var root = getWickRoot();
if (root && typeof root.projectDidChange === "function") root.projectDidChange();
} catch (e7) {}
try {
if (project && project.view && project.view.paper && project.view.paper.view && typeof project.view.paper.view.update === "function") {
project.view.paper.view.update();
}
} catch (e8) {}
}
function withSuppressedToasts(ed, enabled, fn) {
if (!enabled || !ed) return fn();
var origToast = ed.toast;
var origUpdateToast = ed.updateToast;
try { ed.toast = function(){ return null; }; } catch (e1) {}
try { ed.updateToast = function(){ return null; }; } catch (e2) {}
return Promise.resolve()
.then(fn)
.finally(function () {
try { ed.toast = origToast; } catch (e3) {}
try { ed.updateToast = origUpdateToast; } catch (e4) {}
});
}
function parseSvg(svgText) {
var parser = new DOMParser();
var doc = parser.parseFromString(svgText, "image/svg+xml");
var parseError = doc.getElementsByTagName("parsererror")[0];
if (parseError) throw new Error("SVG parse error");
return doc;
}
function isBadUrlValue(v) {
var s = String(v || "").trim().toLowerCase();
if (!s) return false;
if (s.indexOf("javascript:") === 0) return true;
if (s.indexOf("http:") === 0) return true;
if (s.indexOf("https:") === 0) return true;
if (s.indexOf("//") === 0) return true;
return false;
}
function stripBadCssUrls(cssText) {
var t = String(cssText || "");
t = t.replace(/@import\s+[^;]+;/gi, "");
t = t.replace(/url\(\s*(['"]?)\s*javascript:[^)]*\)/gi, "url()");
t = t.replace(/url\(\s*(['"]?)\s*https?:[^)]*\)/gi, "url()");
t = t.replace(/url\(\s*(['"]?)\s*\/\/[^)]*\)/gi, "url()");
return t;
}
function sanitizeSvg(svgText, options) {
var doc = parseSvg(svgText);
var svg = doc.documentElement;
if (!svg || svg.nodeName.toLowerCase() !== "svg") {
throw new Error("Not an svg root element");
}
var removedNodes = 0;
var removedAttrs = 0;
var bannedTags = [
"script",
"foreignobject",
"iframe",
"object",
"embed",
"audio",
"video",
"canvas",
"set",
"animate",
"animatetransform",
"animatemotion"
];
if (options && options.removeImages) bannedTags.push("image");
function removeAllByTag(tagName) {
var nodes = doc.getElementsByTagName(tagName);
var list = [];
for (var i = 0; i < nodes.length; i++) list.push(nodes[i]);
for (var j = 0; j < list.length; j++) {
var n = list[j];
if (n && n.parentNode) {
n.parentNode.removeChild(n);
removedNodes++;
}
}
}
for (var b = 0; b < bannedTags.length; b++) removeAllByTag(bannedTags[b]);
if (!(options && options.keepDefs)) removeAllByTag("defs");
if (options && options.stripAllStyleTags) removeAllByTag("style");
var walker = doc.createTreeWalker(svg, NodeFilter.SHOW_ELEMENT, null, false);
var nodesToProcess = [];
while (walker.nextNode()) nodesToProcess.push(walker.currentNode);
for (var nidx = 0; nidx < nodesToProcess.length; nidx++) {
var el = nodesToProcess[nidx];
if (!el || !el.attributes) continue;
var attrs = [];
for (var a = 0; a < el.attributes.length; a++) attrs.push(el.attributes[a]);
for (var k = 0; k < attrs.length; k++) {
var attr = attrs[k];
var name = attr.name;
var value = attr.value;
var lower = name.toLowerCase();
if (lower.indexOf("on") === 0) {
el.removeAttribute(name);
removedAttrs++;
continue;
}
if (lower === "href" || lower === "xlink:href") {
if (isBadUrlValue(value)) {
el.removeAttribute(name);
removedAttrs++;
continue;
}
}
if (lower === "style") {
var cleaned = stripBadCssUrls(value);
if (cleaned !== value) el.setAttribute(name, cleaned);
}
if (lower === "filter" || lower === "clip-path" || lower === "mask" || lower === "fill" || lower === "stroke") {
if (String(value || "").toLowerCase().indexOf("url(") >= 0) {
var vv = String(value || "");
var cssClean = stripBadCssUrls(vv);
if (cssClean !== vv) el.setAttribute(name, cssClean);
}
}
}
}
if (!options || !options.stripAllStyleTags) {
var styleNodes = doc.getElementsByTagName("style");
for (var sidx = 0; sidx < styleNodes.length; sidx++) {
var st = styleNodes[sidx];
if (st && st.textContent) {
var before = st.textContent;
var after = stripBadCssUrls(before);
if (after !== before) st.textContent = after;
}
}
}
if (!svg.getAttribute("viewBox")) {
var w = svg.getAttribute("width");
var h = svg.getAttribute("height");
var wf = parseFloat(w);
var hf = parseFloat(h);
if (isFinite(wf) && isFinite(hf) && wf > 0 && hf > 0) {
svg.setAttribute("viewBox", "0 0 " + wf + " " + hf);
}
}
var serializer = new XMLSerializer();
var out = serializer.serializeToString(doc);
return { text: out, removedNodes: removedNodes, removedAttrs: removedAttrs };
}
function safeFileBaseName(name) {
var n = String(name || "ImportedSVG");
n = n.replace(/\\/g, "/");
n = n.split("/").pop();
n = n.replace(/\.[^.]+$/, "");
n = n.replace(/[^\w\s().,]/g, "_");
n = n.replace(/\s+/g, " ").trim();
if (!n) n = "ImportedSVG";
return n;
}
async function importSanitizedSvgOnStage() {
var bridge = getBridge();
if (!bridge) { setLog("Bridge not found. Make sure Luke Tools bridge is loaded."); return; }
if (!fileInput.files || !fileInput.files.length) { setLog("Select an SVG file first."); return; }
var ed = getEditor(bridge);
var project = getProject(bridge, ed);
if (!ed) { setLog("Editor not found from bridge."); return; }
if (!project) { setLog("Project not found from bridge."); return; }
if (typeof ed.createAssets !== "function") { setLog("editor.createAssets is not available in this build."); return; }
var layer = getActiveLayer(project);
if (!layer) { setLog("No active layer detected. Click the layer you want to import into, then try again."); return; }
var frameNum = parseInt(document.getElementById("frameNum").value, 10);
if (!frameNum || frameNum < 1) frameNum = 1;
var keepDefs = !!document.getElementById("keepDefs").checked;
var removeImages = !!document.getElementById("removeImages").checked;
var stripAllStyleTags = !!document.getElementById("stripAllStyleTags").checked;
var wrapAsClip = !!document.getElementById("wrapAsClip").checked;
var nameClipFromFile = !!document.getElementById("nameClipFromFile").checked;
var suppressToasts = !!document.getElementById("suppressToasts").checked;
var file = fileInput.files[0];
btn.disabled = true;
setLog("Starting SVG import...");
return withSuppressedToasts(ed, suppressToasts, async function () {
try {
log("Reading file: " + file.name);
var original = await file.text();
origPreview.value = original.slice(0, 25000);
log("Sanitizing...");
var result = sanitizeSvg(original, {
keepDefs: keepDefs,
removeImages: removeImages,
stripAllStyleTags: stripAllStyleTags
});
sanPreview.value = result.text.slice(0, 25000);
log("Sanitized. Removed nodes: " + result.removedNodes + " Removed attrs: " + result.removedAttrs);
var base = safeFileBaseName(file.name);
var outName = base + "_sanitized.svg";
var blob = new Blob([result.text], { type: "image/svg+xml" });
var outFile = new File([blob], outName, { type: "image/svg+xml" });
var beforeUUIDs = listAssetUUIDs(project);
log("Importing to assets: " + outFile.name);
ed.createAssets([outFile], []);
var asset = await waitForNewAsset(project, beforeUUIDs, outFile.name, 25000);
if (!asset || !asset.uuid) throw new Error("New asset not found for: " + outFile.name);
log("Asset imported uuid: " + asset.uuid);
var centerX = (project.width || 0) / 2;
var centerY = (project.height || 0) / 2;
setPlayhead(project, frameNum);
ensureBlankFrameAt(layer, frameNum);
log("Placing on stage at center frame: " + frameNum);
var path = await placeImagePathFromAsset(project, asset.uuid, centerX, centerY);
selectionSelectSingle(project, ed, path);
if (wrapAsClip) {
var clipName = nameClipFromFile ? stripExtension(file.name) : "SVG_Clip";
var r = createClipFromSelection(project, ed, clipName);
if (!r || !r.ok) {
log("WARN: Could not convert selection to clip (" + (r && r.reason ? r.reason : "unknown") + ")");
} else {
if (nameClipFromFile) setSelectedNameOrIdentifier(project, ed, stripExtension(file.name));
log("Placed on frame " + frameNum + " (clip)");
}
} else {
log("Placed on frame " + frameNum);
}
forceRefresh(ed, project);
log("DONE");
} catch (err) {
log("ERROR: " + (err && err.message ? err.message : String(err)));
try { console.error(err); } catch (e) {}
} finally {
btn.disabled = false;
}
});
}
btn.addEventListener("click", function () {
importSanitizedSvgOnStage();
});
fileInput.addEventListener("change", function () {
try {
origPreview.value = "";
sanPreview.value = "";
} catch (e) {}
});
})();
</script>
</body>
</html>
Get my Bridge Tool [HERE] Unzip it and load the Bridge.wickobj / place it on the stage / hit the play button on stage (my tools will open) / Close the tools and stop the player / delete the Bridge.wickobj on stage / click on the LukeTools button added to the menu. / load the SVG_Importer.txt / choose your SVG / click
The SVG should load to the stage.
Luke
1 Like
